Under the Hood: Ensuring Bundle.module When Accessing Resources

Accessing Resources in Code

If a target includes resources, Xcode creates a resource bundle, which can be accessed using Bundle.module. This resource bundle is then copied to the app bundle:

App.app
  |-- App (binary)
  |-- <Pkg>_<Target>.bundle

[!IMPORTANT] You are recommended to always use Bundle.module to access resources, and not make assumptions about the exact location of the resource bundle.
See: https://developer.apple.com/documentation/xcode/bundling-resources-with-a-swift-package#Access-a-resource-in-code

How Bundle.module is Accessible

For targets having resources, Xcode or SPM build system generates an internal code for the Bundle.module extension. More about SPM implementation for this: read here.

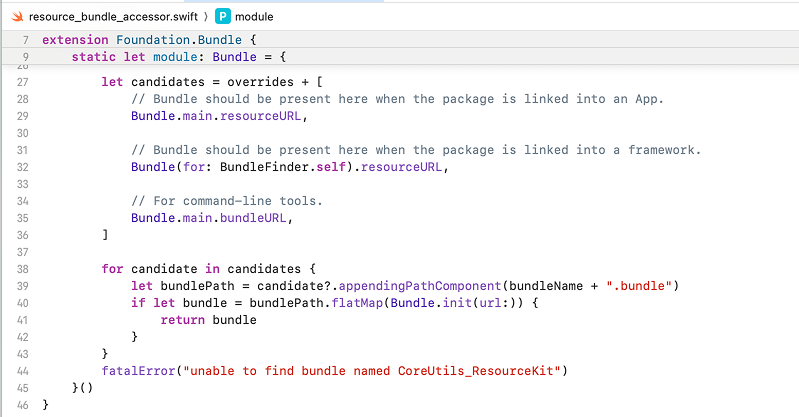

In Xcode, you can jump-to-definition on Bundle.module to see the generated code in a file called resource_bundle_accessor.swift. This file is later compiled (into an .o file) and merged into the library binary, along with other .o files.

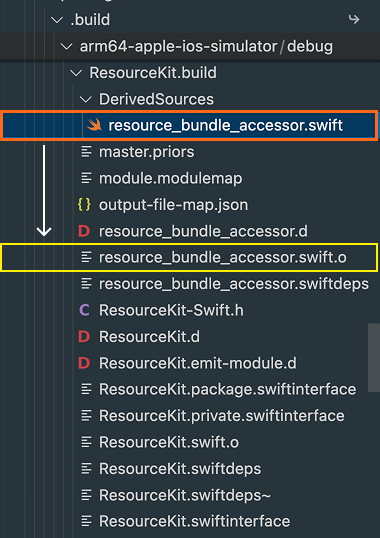

With SPM (using swift build), you should see the generated source in .build/debug/<Target>.build/DerivedSources as in the following image:

Resource Bundle Inside xcframework

With xccache, we want this resource bundle to reside inside the xcframework for convenience. However, when integrating this xcframework as a binary target. The app bundle structure looks like this:

App.app
  |-- App (binary)
  |-- Frameworks
        |-- <Target>.framework
              |-- <Target> (binary)
              |-- <Pkg>_<Target>.bundle

Bundle.module can no longer detect the resource bundle. Note that the framework binary under Frameworks/<Target>.framework/<Target> is codeless. So, Bundle(for: BundleFinder.self) does not work either.

Workaround: Overriding Bundle Lookup Logic

A workaround for this problem is to override the lookup logic. Before combining .o files into the framework binary (with libtool), we overwrite the object file resource_bundle_accessor.swift.o in the build directory. This can be done by:

• First generating the source with the additional bundle lookup
• Compiling this file with swiftc, for example:

  swiftc -emit-library \
  -module-name Foo \
  -target arm64-apple-ios-simulator \
  -sdk <path/to/iPhoneSimulator.sdk> \
  -o <path/to/resource_bundle_accessor.swift.o> \
  resource_bundle_accessor.swift


The same logic applies to Objective-C, ie. generating resource_bundle_accessor.m and compiling it into resource_bundle_accessor.m.o using clang.
